Need Help on How to Plot Radial Displacement
I have a 3D static analysis results of a blade (see attached model file) and would like to plot radial displacement. Can anyone help me with this? Thanks in advance.

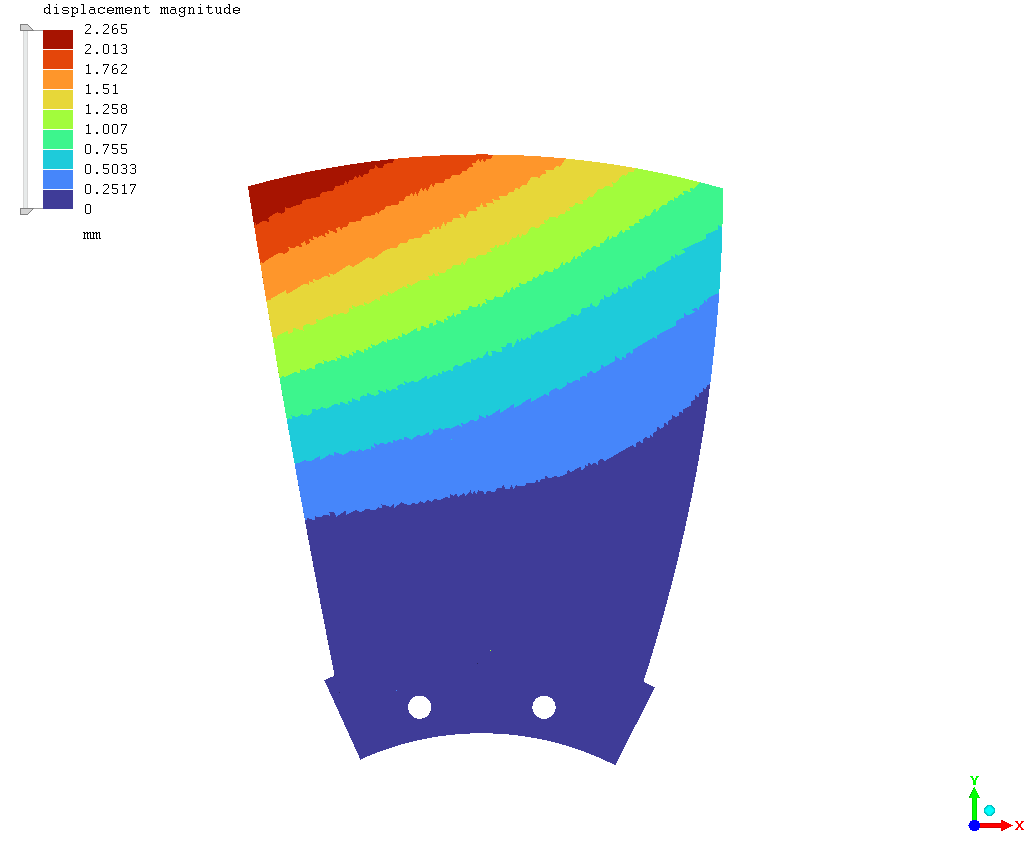

For some reason I can not attach the file. Instead, I am adding some images describing the model file. Blade is rotating from x to y and axis of rotation is out of the screen
For some reason I can not attach the file. Instead, I am adding some images describing the model file. Blade is rotating from x to y and axis of rotation is out of the screen
