Arrowhead constraint symbols size

disladisla
Hi,

¿Are the arrowhead constraint symbols expected to be scaled according to their associated value?. (Traction or pressure for example)
I’m finding some inconsistencies in the size of the arrows when loads (Traction and Pressure) are position dependent and it generates me some uncertainty about their actual value.

Regards

Comments

  • disladisla

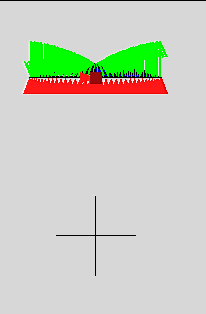

    Example
    One arrow size should be 10 times higher than the other.


  • VictorVictor
    The arrows for each of the two loads are scaled independently. I know this can be misleading but I'm not sure how else to do it. If they were all scaled by the same factor, small loads would become invisible.
  • disladisla
    Makes sense. Doubts cleared up.
    Thanks Victor.
